Hint: Use the knowledge of IUPAC nomenclature and common name to draw the structures, focus on the substituents attached and the functional groups of structure. Keep in mind that they are having some special names so should first know about the names and then draw.

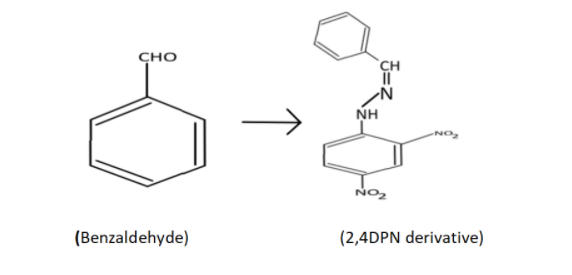

Complete Step by step answer: i) Here, the functional group is aldehyde(-CHO) bonded to benzene, hence benzaldehyde and 2,4-dinitrophenylhydrazone have hydrazone (${{\text{R}}_{\text{1}}}{{\text{R}}_{\text{2}}} - {\text{C}} = {\text{NN}}{{\text{H}}_{\text{2}}}$) and two substituents of nitro (${\text{N}}{{\text{O}}_2}$) are bonded in 2nd and 4th position of the phenyl group. Now it is time for the structure.
ii) This time an oxime (${{\text{R}}_1}{{\text{R}}_2} - {\text{C}} = {\text{NOH}}$ ) group is bonded with a cyclopropanone. Therefore, (=NOH )group will be bonded with carbon having the ketone functional group. And the structure,

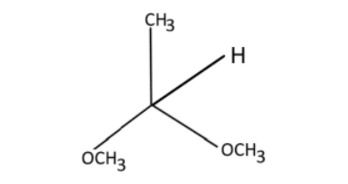

iii) If we breakdown this structure, we can see that this structure has 3 groups. 1-acetaldehyde (${\text{C}}{{\text{H}}_{\text{3}}} - {\text{CHO}}$), 2-methyl (-${\text{C}}{{\text{H}}_{\text{3}}}$), and 1-acetal (${{\text{R}}_{\text{2}}}{\text{C}}{\left( {{\text{O}}{{\text{R}}^{\text{'}}}} \right)_{\text{2}}}$). Now let’s draw the structure

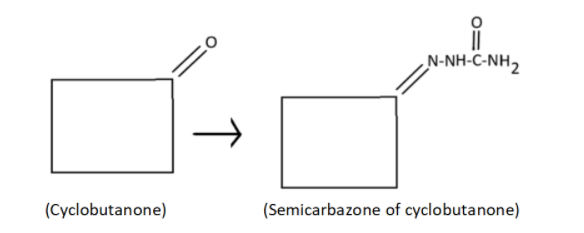

iv) By looking at functional group cyclobutanone we can say it is a ketone, a cyclic ketone with 4 carbon. And semicarbazone. Here’s how the structure

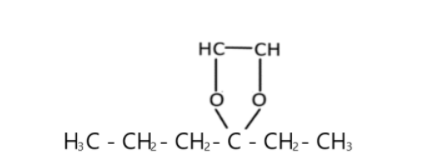

v) Hexane-3-one is a simple ketone compound, and we have to write the ethylene(-CH=CH-) ketal ($ - {{\text{O}}_{\text{2}}}{{\text{R}}_{\text{1}}}{{\text{R}}_{\text{2}}}$) derivate for it. So here what the structure looks like; ${{\text{H}}_{\text{3}}}{\text{C - C}}{{\text{H}}_2}{\text{ - C}}{{\text{H}}_2}{\text{ - }}\mathop {\text{C}}\limits^{\mathop {||}\limits^{\text{O}} } {\text{ - C}}{{\text{H}}_2}{\text{ - C}}{{\text{H}}_{\text{3}}}$ ( Hexan-3-one) $ \to $
vi) Formaldehyde is the simplest aldehyde (-CHO) there is, it has one carbon and is also called methanal (IUPSC name). Now let’s draw the diagram;
Note: IUPAC names hold importance in chemistry, but more often the common names are used, just like in this question. Therefore, it is also paramount to know the common names of certain compounds. Just read up the common names available in the NCERT book.
Complete Step by step answer: i) Here, the functional group is aldehyde(-CHO) bonded to benzene, hence benzaldehyde and 2,4-dinitrophenylhydrazone have hydrazone (${{\text{R}}_{\text{1}}}{{\text{R}}_{\text{2}}} - {\text{C}} = {\text{NN}}{{\text{H}}_{\text{2}}}$) and two substituents of nitro (${\text{N}}{{\text{O}}_2}$) are bonded in 2nd and 4th position of the phenyl group. Now it is time for the structure.
ii) This time an oxime (${{\text{R}}_1}{{\text{R}}_2} - {\text{C}} = {\text{NOH}}$ ) group is bonded with a cyclopropanone. Therefore, (=NOH )group will be bonded with carbon having the ketone functional group. And the structure,
iii) If we breakdown this structure, we can see that this structure has 3 groups. 1-acetaldehyde (${\text{C}}{{\text{H}}_{\text{3}}} - {\text{CHO}}$), 2-methyl (-${\text{C}}{{\text{H}}_{\text{3}}}$), and 1-acetal (${{\text{R}}_{\text{2}}}{\text{C}}{\left( {{\text{O}}{{\text{R}}^{\text{'}}}} \right)_{\text{2}}}$). Now let’s draw the structure
iv) By looking at functional group cyclobutanone we can say it is a ketone, a cyclic ketone with 4 carbon. And semicarbazone. Here’s how the structure
v) Hexane-3-one is a simple ketone compound, and we have to write the ethylene(-CH=CH-) ketal ($ - {{\text{O}}_{\text{2}}}{{\text{R}}_{\text{1}}}{{\text{R}}_{\text{2}}}$) derivate for it. So here what the structure looks like; ${{\text{H}}_{\text{3}}}{\text{C - C}}{{\text{H}}_2}{\text{ - C}}{{\text{H}}_2}{\text{ - }}\mathop {\text{C}}\limits^{\mathop {||}\limits^{\text{O}} } {\text{ - C}}{{\text{H}}_2}{\text{ - C}}{{\text{H}}_{\text{3}}}$ ( Hexan-3-one) $ \to $
vi) Formaldehyde is the simplest aldehyde (-CHO) there is, it has one carbon and is also called methanal (IUPSC name). Now let’s draw the diagram;
Note: IUPAC names hold importance in chemistry, but more often the common names are used, just like in this question. Therefore, it is also paramount to know the common names of certain compounds. Just read up the common names available in the NCERT book.
