How can we draw a reflex angle?

seo-qna
SearchIcon
Answer
VerifiedVerified
347.7k+ views
Hint: To solve this question first we assume an angle that is in the domain of reflex angle. Then we make a reference line and decide in which direction we are making the reflex angle. Then we subtract the assumed angle from a total angle and draw that from the opposite direction than we assume. And at last, we express that angle from the assumed direction.

Complete step by step solution:
In this question, we have to explain the process of how we make the reflex angle.

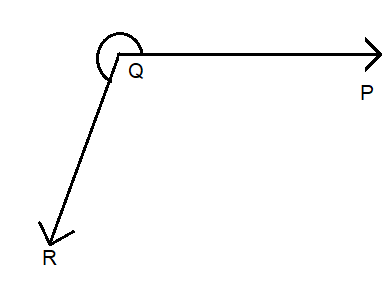

A reflex angle is an angle that looks like a reflection of a ray. A reflex angle is an angle that is greater than \[180^\circ \] but smaller than \[360^\circ \]. It is as shown in the figure.
seo images

To solve this question first we assume an angle greater than \[180^\circ \] whose reflex angle is formed.
Let us assume the angle is \[200^\circ \]
Now we will subtract this angle from total angle \[360^\circ \] and then make that angle in the opposite direction and then we represent that from the opposite direction and that is a reflex angle.

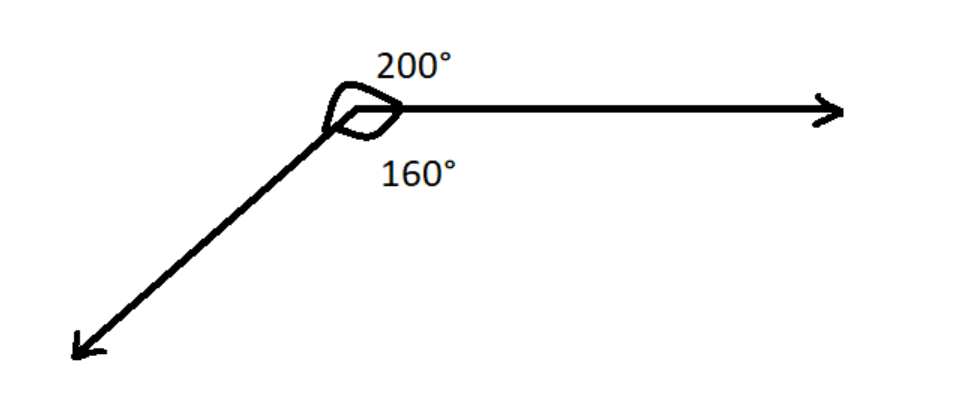

Hence, we will make the angle of:
$360^\circ - 200^\circ = 160^\circ $
We can simply draw the angle of $160^\circ $ using a protractor. We should draw this angle in the opposite direction.
seo images

For any general reflex angle, we have to make a reflection angle from an anticlockwise direction. Then we make the subtracted angle from a clockwise direction and mark that the reflex angle from the reference line.

Note:
This question tests our basics, the definition of reflex angle and how to draw an angle using a protractor. We have to remember them in order to answer such questions. We have to remember that we need to draw the subtracted angle in the opposite direction.
