Question

The PT diagram for an ideal gas is shown in the figure where AC is an adiabatic process. Find the corresponding P-V diagram in a figure.

A.

B.

C.

D.

Answer 1

Hint: Analyze the given PT diagram well. Find out the processes represented by AB and BC in the diagram and AC is already given. Recall from your prior knowledge how these processes are depicted in a PV diagram. Check which among the given PV diagrams correctly corresponds to the given PT diagram.

Complete answer:
In the question, we are given a PT diagram of an ideal gas with three processes marked AB, BC and AC and then we are asked to find the corresponding PV diagram.
We are directly given the question that AC is the graph representing adiabatic processes. Now let us analyze the PT diagram further to understand what processes AB and BC represent.
From the given diagram, we see that, for AB the temperature is constant. We know that the process in which the temperature remains constant is the isothermal process. Therefore, AB represents an isothermal process.
Now for BC, the pressure is remaining constant which from our prior knowledge we know further represents an isobaric process. Now that we have understood all the processes represented in the PT diagram let us make the corresponding PV diagram using the reference diagram given below.

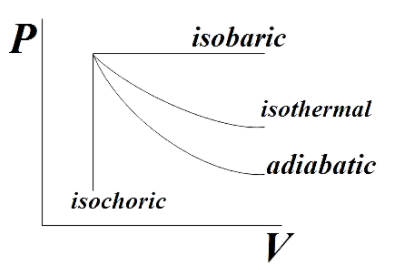

From the reference PV diagram we get that isobaric processes are drawn parallel to the Volume axis. So BC being an isobaric process will be parallel to the volume axis.
From the reference PV diagram we see that though the isothermal and adiabatic processes in a PV diagram seem similar, adiabatic process is steeper than that of isothermal process. So AC should be steeper than AB.

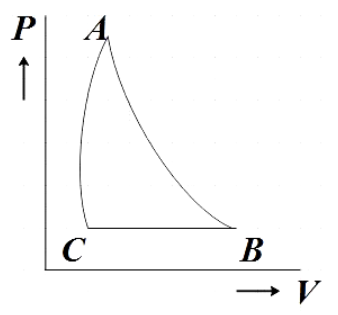

The PV diagram that satisfies all these condition is given by,

Hence, option B is the correct answer.

Note:
PV relation for isothermal process is given by,
$PV=k$
While the PV relation for adiabatic process is given by,
$P{{V}^{\gamma }}=k$
From these relations, we realize why adiabatic processes lie below the isothermal process. Though their PV diagrams appear similar both these processes are entirely opposite to each other in many ways.
