Question

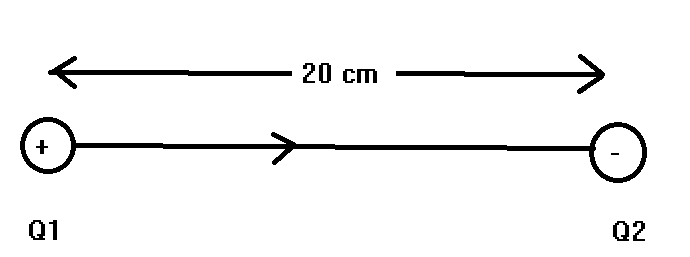

Determine the electrostatic potential energy of a system consisting of two charges $7\mu C$ and $-2\mu C$ separated by a distance of 20 cm.

Answer 1

Hint: We will start our solution by understanding what electrostatic potential energy means. Generally, electrostatic potential energy is defined as the amount of energy required to move a charge against the electric field acting on it. Its unit is in Joules (J).

Formula used:
$$U_{elect.}=k{\displaystyle \frac{Q_1\times Q_2}{r_{12}}}$$

Complete step by step solution:

As we are dealing with the system of two charges. Therefore taking $Q_1$ and $Q_2$be the charges and $r_{12}$be the separation between them. As we already know electrostatic potential energy (U) can be defined as the amount of energy required to charge against the electric field. It can be repulsive or attractive based on the nature of the charged particle.
Now the electrostatic potential formula can be given as
$$\Rightarrow U_{elect.}=k{\displaystyle \frac{Q_1\times Q_2}{r_{12}}}$$
 Where$k={\displaystyle \frac{1}{4\pi {\epsilon }_0}}$hence
$$\Rightarrow U_{elect.}={\displaystyle \frac{1}{4\pi {\epsilon }_0}}{\displaystyle \frac{Q_1\times Q_2}{r_{12}}}$$ -------- Equation (1)
As the two charges of the system and separation between the charges are provided in the question
So, we can deduce as
$\Rightarrow Q_1=7\mu C=7\times {10}^{-6}C$
$\Rightarrow Q_2=-2\mu C=-2\times {10}^{-6}C$
$\Rightarrow r_{12}=20cm=0.20m$
$\Rightarrow k={\displaystyle \frac{1}{4\pi {\epsilon }_0}}=9\times {10}^9$
Now substituting the above quantities in equation (1), we get
$$\Rightarrow U_{elect.}={\displaystyle \frac{1}{4\pi {\epsilon }_0}}{\displaystyle \frac{Q_1\times Q_2}{r_{12}}}$$
$$\Rightarrow U_{elect.}=9\times {10}^9\times {\displaystyle \frac{7\times {10}^{-6}C\times -2\times {10}^{-6}C}{0.20m}}$$
$$\Rightarrow U_{elect.}=-630\times {10}^{-3}J$$
$$\Rightarrow U_{elect.}=-0.630J$$
Here, our electrostatic potential is $$-0.630J$$ and it is negative which indicates that the nature of the interaction between the charges is attractive. That means one of the charges is positive and the other will be negative.

Note: It has to be remembered that for a system of charges it can be seen that if the two charges are of the same sign let say both the charges are positive or negative and then the positive value of electrostatic potential energy will show that the interaction between them will be repulsive and if the value of electrostatic potential energy is negative then the interaction will be attractive.
