Understanding How a Current Loop Acts as a Magnetic Dipole

A current-carrying loop produces a magnetic field with a distinct axis and polarity, resembling the magnetic field created by a bar magnet. This property is fundamental to understanding how current loops exhibit magnetic dipole behavior and contribute to the principles of magnetism used in electromagnetic devices.

Current Loop as a Magnetic Dipole

A planar current-carrying loop generates a magnetic field pattern identical to that of a magnetic dipole. The loop establishes north and south poles along its axis and creates a dipole field in the surrounding space. This analogy forms the basis for analyzing the magnetic properties of current loops in theoretical and practical applications.

Magnetic Dipole Moment of a Current Loop

The magnetic dipole moment is a characteristic vector quantity that defines the strength and orientation of a current loop’s magnetic field. For a planar loop, the magnetic dipole moment depends on the current flowing through the loop and the area it encloses.

If $I$ is the current and $A$ is the area vector perpendicular to the plane of the loop:

The magnetic dipole moment is given by:

$\vec{m} = I \vec{A}$

Here, $\vec{A}$ is a vector of magnitude equal to the area of the loop, and its direction is determined by the right-hand rule. This fundamental relationship is extensively used in magnetic effects of current topics.

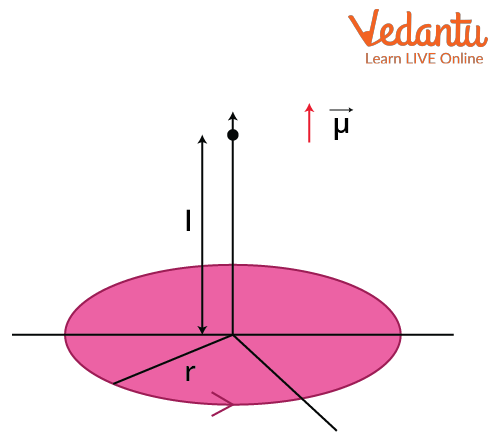

For a circular loop of radius $r$:

$A = \pi r^2$

So, $m = I \times \pi r^2$

Direction of Magnetic Dipole Moment: Right-Hand Rule

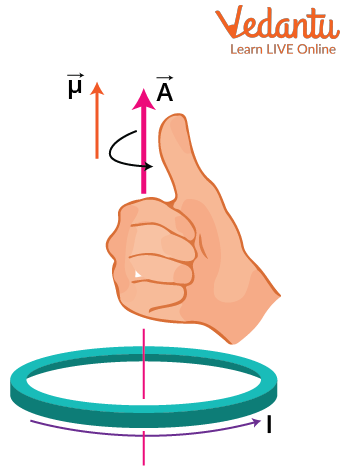

The direction of the magnetic dipole moment is always perpendicular to the plane of the loop. According to the right-hand thumb rule, if the fingers of the right hand curl in the direction of conventional current, the extended thumb points along the direction of the area vector and the magnetic dipole moment.

This directionality is essential for solving problems involving the torque experienced by a loop in an external magnetic field and is a fundamental part of the analysis in electromagnetic devices.

Derivation: Expression for Magnetic Dipole Moment

Experimentally, the magnetic dipole moment $m$ of a planar current loop is found to be directly proportional to both the current $I$ and the area $A$ of the loop:

$m \propto I$ and $m \propto A$

Combining these, $m \propto I \times A$

Setting the proportionality constant to unity in SI units gives:

$m = I \times A$

For a loop with $N$ turns, the total magnetic dipole moment is:

$m = N I A$

This general equation applies to planar loops of any shape. For further information on magnetic moment concepts, see Understanding Magnetic Moment.

Physical Significance of the Current Loop as a Magnetic Dipole

A current loop exhibits physical properties identical to a bar magnet. It has a definite north and south pole along its axis, responds to external magnetic fields, and demonstrates torque due to field interaction. This behavior explains many foundational effects in magnetism and the operation of various electrical instruments.

The magnitude of the magnetic dipole moment determines the strength of the resulting magnetic field. Devices such as galvanometers, electric motors, and compasses rely on this concept. For detailed principles related to magnetic effects, refer to Magnetic Effects of Current.

Torque on a Current Loop in a Magnetic Field

When a current-carrying loop is placed in a uniform external magnetic field $\vec{B}$, it experiences a torque $\vec{\tau}$ that tends to align the dipole moment with the field. The torque is given by:

$\vec{\tau} = \vec{m} \times \vec{B}$

The magnitude of this torque reaches its maximum value when the magnetic dipole moment is perpendicular to the field. This fundamental effect underlies the functioning of moving-coil instruments and many electromagnetic applications. For comprehensive revision, refer to Electromagnetic Induction Revision Notes.

Solved Example: Calculating Magnetic Dipole Moment

Consider a circular loop with radius $r = 0.10$ m carrying a current $I = 5.00$ A. The area of the loop is $A = \pi (0.10)^2 = 0.0314$ m$^2$.

Thus, the magnetic dipole moment is $m = I \times A = 5.00 \times 0.0314 = 0.157$ A·m$^2$.

This calculation demonstrates the direct use of the formula in standard numerical problems as encountered in entrance examinations.

Applications of Current Loop as Magnetic Dipole

The behavior of a current loop as a magnetic dipole enables its use in many electromagnetic devices. These include moving-coil galvanometers, electric meters, motors, and magnetic field sensors. The principle is also fundamental in the operation of solenoids and electromagnets, where increasing the number of turns magnifies the total dipole moment.

• Basis of moving-coil instruments
• Working principle of electric motors
• Magnetic compasses and sensors

Advanced calculations involving multiple loops, solenoids, and field distributions can be practiced with the Electromagnetic Induction Practice Paper.

Special Cases: Non-Circular and Multiple Turn Loops

The formula for the magnetic dipole moment applies to loops of any planar shape. The area $A$ must represent the region enclosed by the loop. For coils with $N$ identical turns, the total magnetic moment becomes $m_{\text{total}} = NIA$.

The direction of the magnetic dipole moment remains perpendicular to the plane, determined by current direction and the area vector. For more on related concepts, visit Magnetic Field Due to Infinite Wire.

Comparison of Current Loop and Bar Magnet

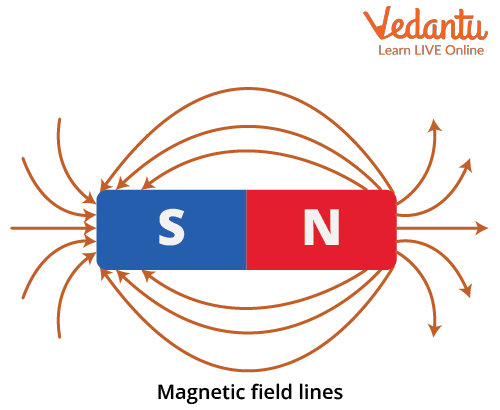

A current loop and a bar magnet both generate similar external magnetic field patterns. The field lines emerge from the north pole (or area vector direction) and re-enter at the south pole. The underlying magnetic moment provides a quantitative measure for both cases.

Analyzing the similarity aids in understanding torque effects and alignment in external fields. For straight conductor comparisons, refer to Magnetic Field Due to Straight Wire.
