Hint: If we place near each other and change the magnetic field of one coil, it will inspire electromagnetic changes to the other coil. This way the two coils reciprocate mutually. According to Faraday the electromagnetic changes in the second coil will try to oppose the change in magnetic field of the first coil.
Formula used:
$E_M=-\dfrac{\mathrm{d}\phi }{\mathrm{d} t}$
where $E_M$ is the EMF induced in the second coil, $\phi$ is the flux of magnetic field through the second coil.
Complete step by step answer:
Let us place two coils near each other and connect one coil to electrical supply that changes with time. Let’s say that the current flowing in this coil is $I_1$. This coil can be called primary coil. As the current in the primary coil is changing, so, it will produce a magnetic field to oppose this change. Now, though the other coil is not connected to any supply, because it is kept near to the primary coil, the magnetic field lines of the primary coil will pass through it. Hence, there will be a changing magnetic flux inside the coil. Let us call this coil, the secondary coil. The secondary coil will try to oppose the changes in magnetic flux through it and that is why it will develop an electromotive force (EMF), which will oppose the changing magnetic flux by creating its own magnetic flux in direction opposite to the change. This way the secondary coil was inspired by the primary coil to develop EMF to oppose changes in magnetic field and thus this phenomenon is called mutual induction.
When two coils are placed near each other or brought near each other, the magnetic field of one coil gets linked to the other. This linking in the magnetic field leads to generation of voltage in the second coil called induced voltage. This is defined as mutual induction.
Let the lengths of the two coils be $l$ and radius of the primary coil be $r_1$ and that of secondary coil be $r_2$. As both the solenoids are wound over each other, all the magnetic field lines of the primary coil pass through the secondary coil.
Let the number of turns in the primary coil be $N_1$ and the number of turns in the secondary coil be $N_2$.
If the current throughout primary coil is $I_1$, the strength of at the axis magnetic field will be:
$B_1=\dfrac{N_1}{l}\cdot\mu_0 I_1$
As there are $N_1$ turns in the coil, we multiplied $N_1$ to the magnetic field of a single turn to get the total magnetic field. $mu_0$ is the permeability of free space. For the secondary coil $S_2$, this magnetic field exists only in the area occupied by the primary coil $S_1$, which is $\pi {r_1}^2$. Thus, the flux of magnetic field $\phi_2$ through secondary coil is:
$\begin{align} \phi_2&=N_2\cdot B_1 \cdot \pi {r_1}^2\\&=N_2\cdot\left ( \dfrac{N_1}{l}\cdot\mu_0 I_1 \right )\pi {r_1}^{2}\\&=\dfrac{\mu_0N_1N_2 \pi {r_1}^2}{l}I_1\end{align}$
The induced EMF is given by Faraday’s Law:
$\begin{align} E_M&=-\dfrac{\mathrm{d} \phi}{\mathrm{d} t}\\&=-\dfrac{\mathrm{d} \dfrac{\mu_0N_1N_2 \pi {r_1}^2}{l}I_1}{\mathrm{d} t}\\&=-\dfrac{\mu_0N_1N_2 \pi {r_1}^2}{l}\dfrac{\mathrm{d}I_1 }{\mathrm{d} t}\\&=-M\dfrac{\mathrm{d}I_1 }{\mathrm{d} t}\end{align}$
$M$ is called mutual inductance of the coils, given by the expression $M=\dfrac{\mu_0N_1N_2 \pi {r_1}^2}{l}$.
Note:
The students may mistake the formula for magnetic field for an inductor as $B=\mu n I$ with the one used above $B=\mu\cdot \dfrac{N}{l} \cdot I$. You should keep in mind that $n$ is the number of turns per unit length and $N$ is total turns of the coil. That is:
$n=\dfrac{N}{l}$
Formula used:
$E_M=-\dfrac{\mathrm{d}\phi }{\mathrm{d} t}$
where $E_M$ is the EMF induced in the second coil, $\phi$ is the flux of magnetic field through the second coil.
Complete step by step answer:
Let us place two coils near each other and connect one coil to electrical supply that changes with time. Let’s say that the current flowing in this coil is $I_1$. This coil can be called primary coil. As the current in the primary coil is changing, so, it will produce a magnetic field to oppose this change. Now, though the other coil is not connected to any supply, because it is kept near to the primary coil, the magnetic field lines of the primary coil will pass through it. Hence, there will be a changing magnetic flux inside the coil. Let us call this coil, the secondary coil. The secondary coil will try to oppose the changes in magnetic flux through it and that is why it will develop an electromotive force (EMF), which will oppose the changing magnetic flux by creating its own magnetic flux in direction opposite to the change. This way the secondary coil was inspired by the primary coil to develop EMF to oppose changes in magnetic field and thus this phenomenon is called mutual induction.
When two coils are placed near each other or brought near each other, the magnetic field of one coil gets linked to the other. This linking in the magnetic field leads to generation of voltage in the second coil called induced voltage. This is defined as mutual induction.

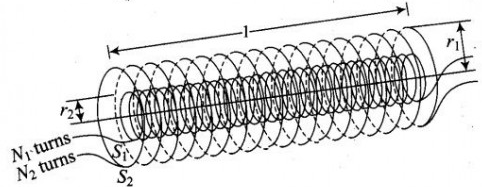

Let the lengths of the two coils be $l$ and radius of the primary coil be $r_1$ and that of secondary coil be $r_2$. As both the solenoids are wound over each other, all the magnetic field lines of the primary coil pass through the secondary coil.
Let the number of turns in the primary coil be $N_1$ and the number of turns in the secondary coil be $N_2$.
If the current throughout primary coil is $I_1$, the strength of at the axis magnetic field will be:
$B_1=\dfrac{N_1}{l}\cdot\mu_0 I_1$
As there are $N_1$ turns in the coil, we multiplied $N_1$ to the magnetic field of a single turn to get the total magnetic field. $mu_0$ is the permeability of free space. For the secondary coil $S_2$, this magnetic field exists only in the area occupied by the primary coil $S_1$, which is $\pi {r_1}^2$. Thus, the flux of magnetic field $\phi_2$ through secondary coil is:
![seo images](https://www.vedantu.com/question-sets/2c849d3e-683e-4694-b4c6-d9e9b7cfd0699152267715590896471.png)
$\begin{align} \phi_2&=N_2\cdot B_1 \cdot \pi {r_1}^2\\&=N_2\cdot\left ( \dfrac{N_1}{l}\cdot\mu_0 I_1 \right )\pi {r_1}^{2}\\&=\dfrac{\mu_0N_1N_2 \pi {r_1}^2}{l}I_1\end{align}$
The induced EMF is given by Faraday’s Law:
$\begin{align} E_M&=-\dfrac{\mathrm{d} \phi}{\mathrm{d} t}\\&=-\dfrac{\mathrm{d} \dfrac{\mu_0N_1N_2 \pi {r_1}^2}{l}I_1}{\mathrm{d} t}\\&=-\dfrac{\mu_0N_1N_2 \pi {r_1}^2}{l}\dfrac{\mathrm{d}I_1 }{\mathrm{d} t}\\&=-M\dfrac{\mathrm{d}I_1 }{\mathrm{d} t}\end{align}$
$M$ is called mutual inductance of the coils, given by the expression $M=\dfrac{\mu_0N_1N_2 \pi {r_1}^2}{l}$.
Note:
The students may mistake the formula for magnetic field for an inductor as $B=\mu n I$ with the one used above $B=\mu\cdot \dfrac{N}{l} \cdot I$. You should keep in mind that $n$ is the number of turns per unit length and $N$ is total turns of the coil. That is:
$n=\dfrac{N}{l}$
